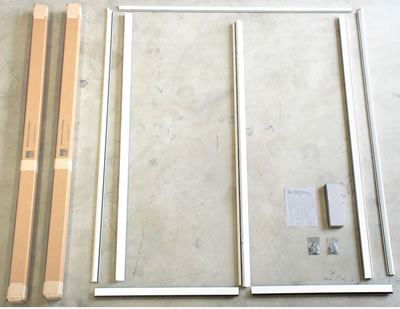

PCA Products offers a complete installation kit for installing a 72" x 96" double doors. All parts, hardware, and instructions are included.
Z-bar with wool pile
• Acts as a “slam” strip
• 1” depth, designed to work with 1” brick molding
• Embedded wool pile for tight seal and quiet close
• Exclusive Incorporated Hinge Guide Rail for easy installation of piano hinge
Adjustable side expander with piano hinge
• Full adjustability in width giving flexibility to accommodate a variety of openings
• Very forgiving when working with out of square openings
• Piano hinge provides solid support from top to bottom eliminating door sag
Adjustable bug sweep
• Commercial grade wool pile material is superior to a rubber sweep as it will not tear or crack and it seals better
• Easier to open - minimal drag factor
• Secured into aluminum extrusion with an extruded T design and doesn’t pull out like vinyl
EZ-pull handle with pneumatic closure tube
• Easy on hands with pull style operation
• All rust-free construction: stainless steel, aluminum and zinc die cast
• Includes both jamb and corner installation brackets for closure tube
• Will work with out-swing doors only
Installation fasteners
• #8 square drive pan head tek
• Painted to match door finish
Installation instructions
Single Door Standard Sizes
|
Order
|
Rough
|
Range of Adjustment
|
|
Size
|
Opening
|
Width
|
Height
|
| 30" x 80" |
30" x 80" |
29½" ~ 30½" |
79¾" ~ 80¾" |
|
32" x 80"
|
32" x 80"
|
31½" ~ 32½"
|
79¾" ~ 80¾"
|
|
36" x 80"
|
36" x 80"
|
35½" ~ 36½"
|
79¾" ~ 80¾"
|
Double Door Standard Sizes
|
Order
|
Rough
|
Range of Adjustment
|
|
Size
|
Opening
|
Width
|
Height
|
|
60" x 80"
|
60" x 80"
|
59" ~ 61" |
79¾" ~ 80¾"
|
|
64" x 80"
|
64" x 80"
|
63" ~ 65" |
79¾" ~ 80¾"
|
|
72" x 80"
|
72" x 80"
|
71" ~ 73" |
79¾" ~ 80¾"
|
When ordering a french door system, factor in a one (1) inch width for the astragal. Example: If two 36" doors are ordered, the rough opening should be 73" (2 x 36" plus 1").
Custom size aluminum screen doors are available. View our custom size doors section for more information.
